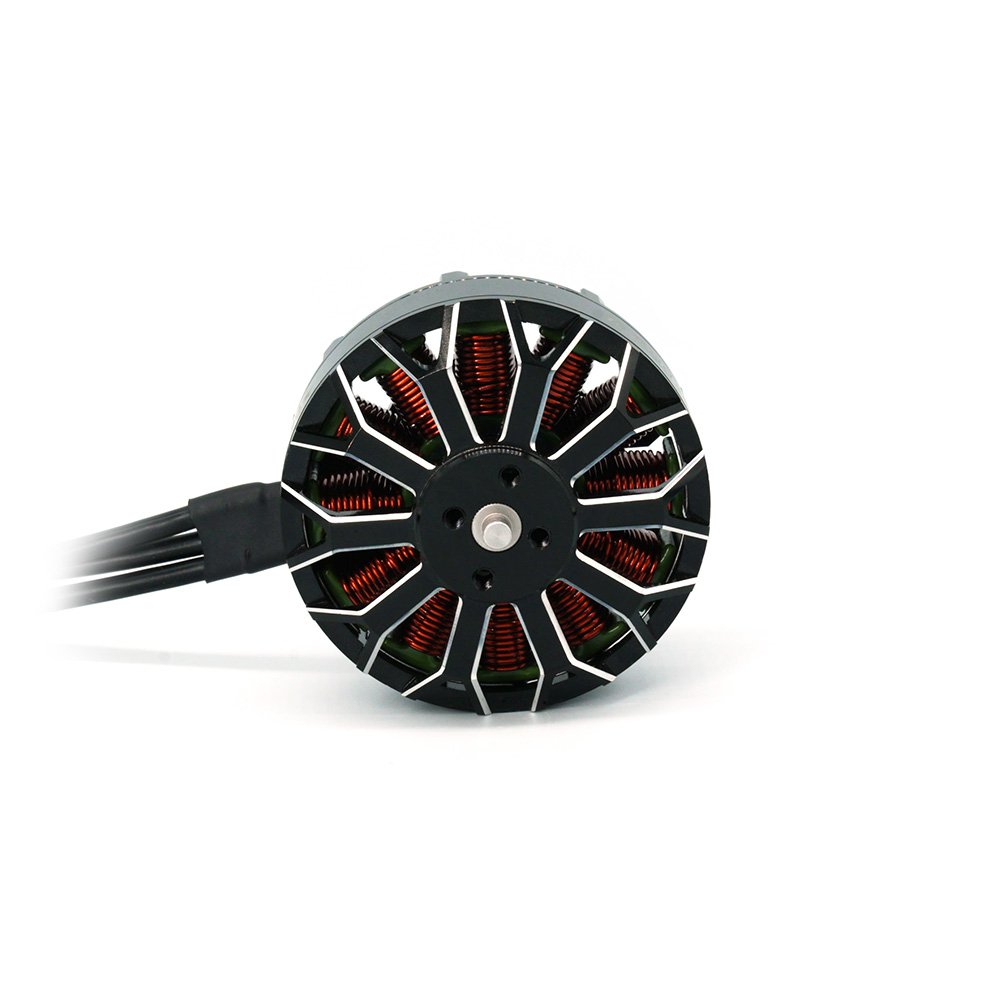

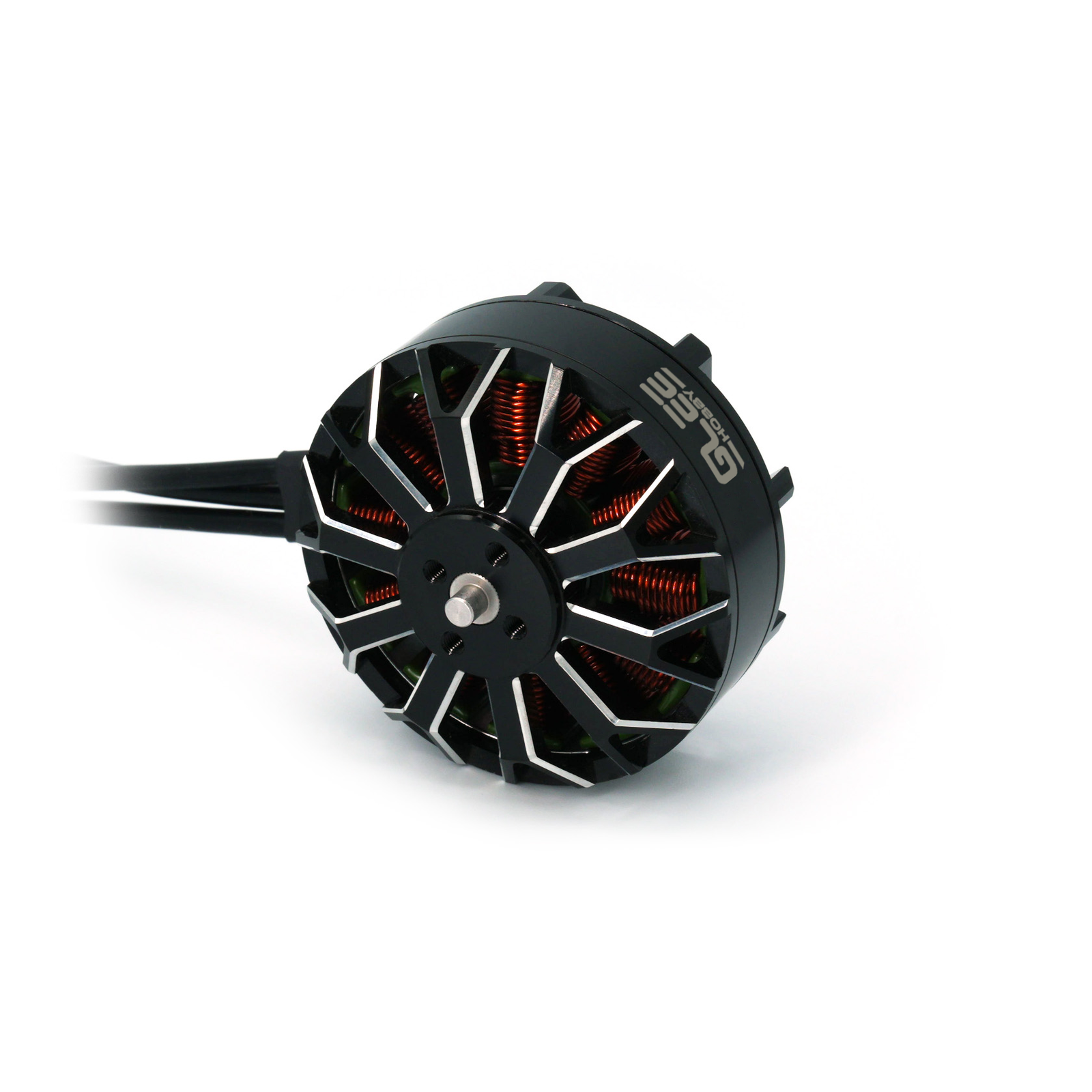

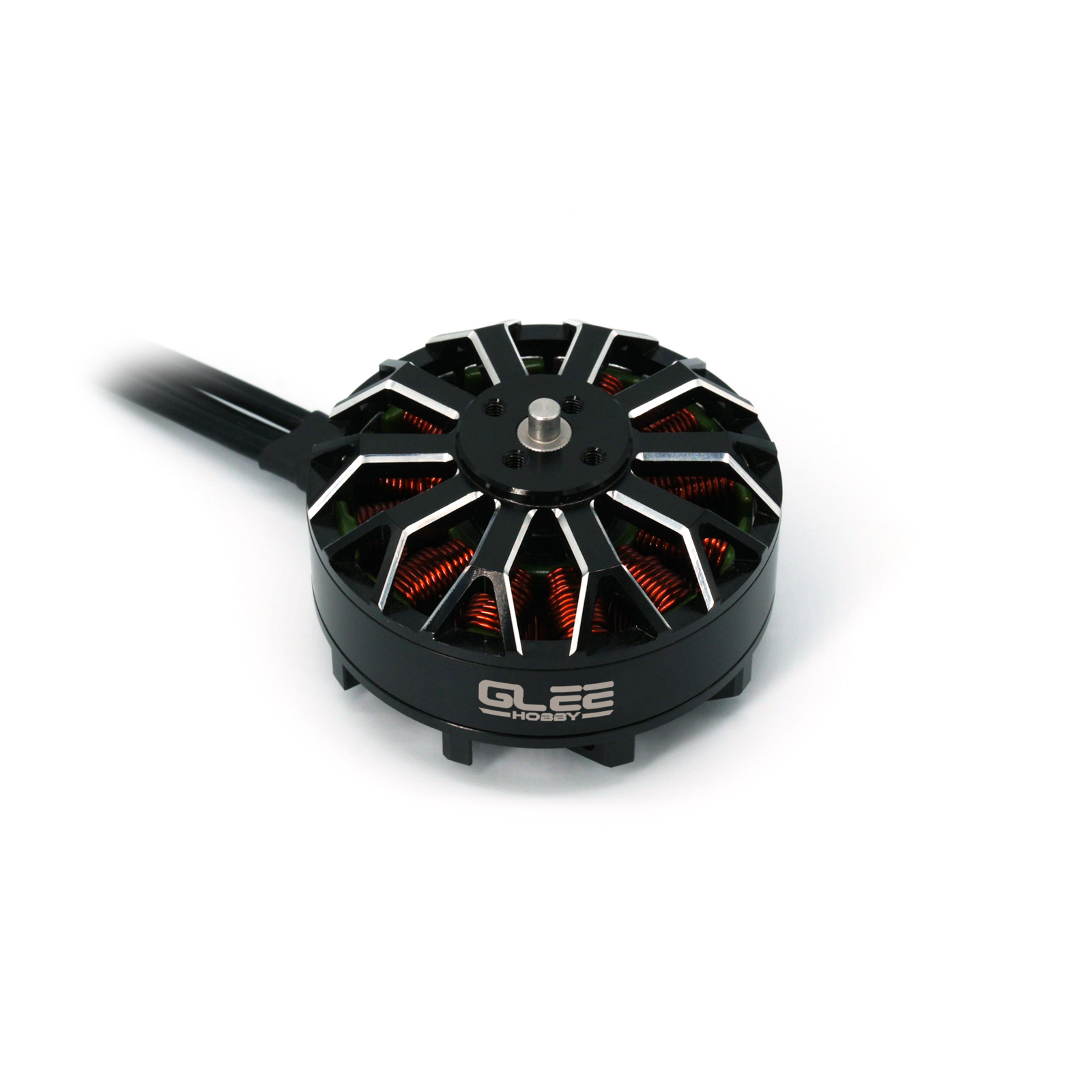

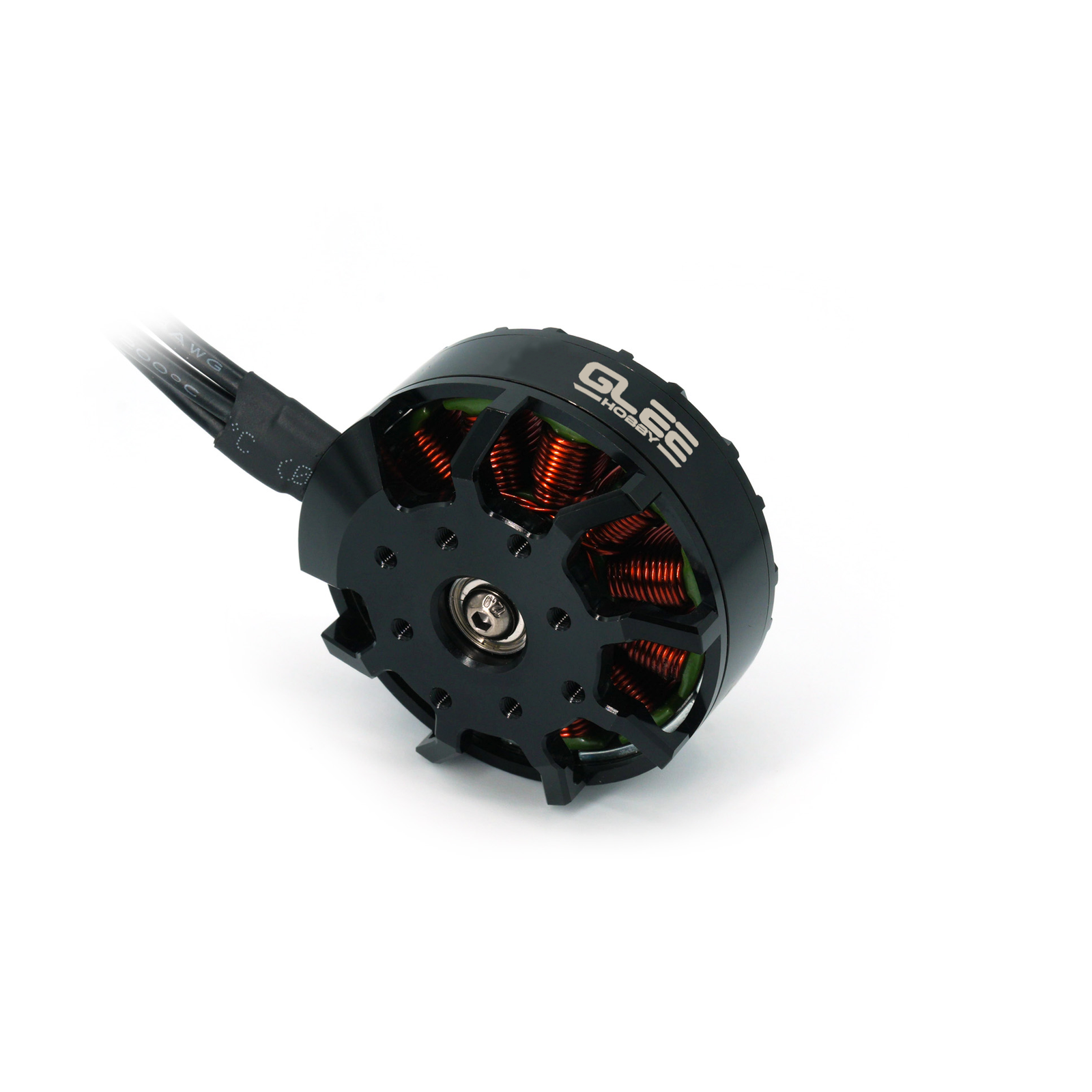

FeatureThis motor delivers excellent torque and power efficiency. The 52.8mm x 10mm stator ensures stable power delivery, ideal for drones with high payloads or demanding flight conditions.With a large Φ60.8mm x 30mm form factor and weighing 310g (without wires), this motor is engineered for heavy-lift drones and industrial UAV applications. The larger motor size allows it to support larger propellers (17-20 inch), offering superior thrust for large, powerful drones.The motor supports a wide voltage range, compatible with 4-8S LiPo batteries, making it highly versatile for various drone applications, from high-speed flights to industrial use cases.Featuring extremely low internal resistance (0.031 ohms for 340KV and 0.021 ohms for 500KV), the motor reduces power loss and heat generation, ensuring efficient power delivery and extending the motor’s operational lifespan even under high-power conditions.The motor is designed for industrial applications such as agricultural drones, mapping drones or professional filming platforms.SpecificationsConfiguration:12N 14P Stator Diameter: 52.8mm Stator Length:10mm Shaft Diameter: 4 Motor Dimensions(Dia*Len): Φ60.8*30mm Weight:310g (W/ o Wire) 5210 340KV No.of Cells(Lipo):4-8S Idle Current (10V): 1.7A Max Continuous Current:70A (180S) Max Continuous Power: 2300W (180S) Internal Resistance: 0.031 5210 500KV No.of Cells(Lipo):4-8S Idle Current (10V): 2.5A Max Continuous Current: 80A (180S) Max Continuous Power: 2900W (180S) Internal Resistance: 0.021
