$85.49
$126.53

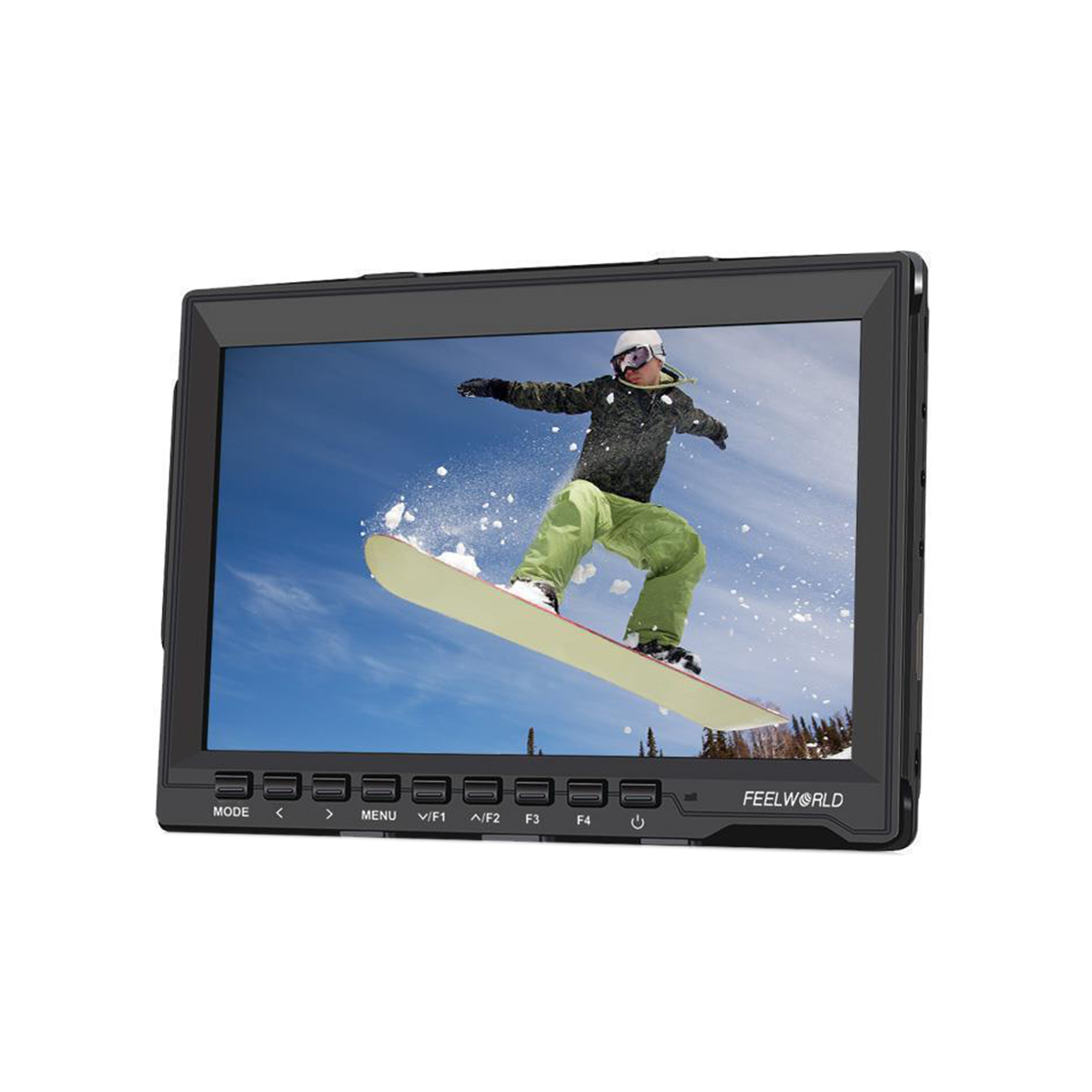

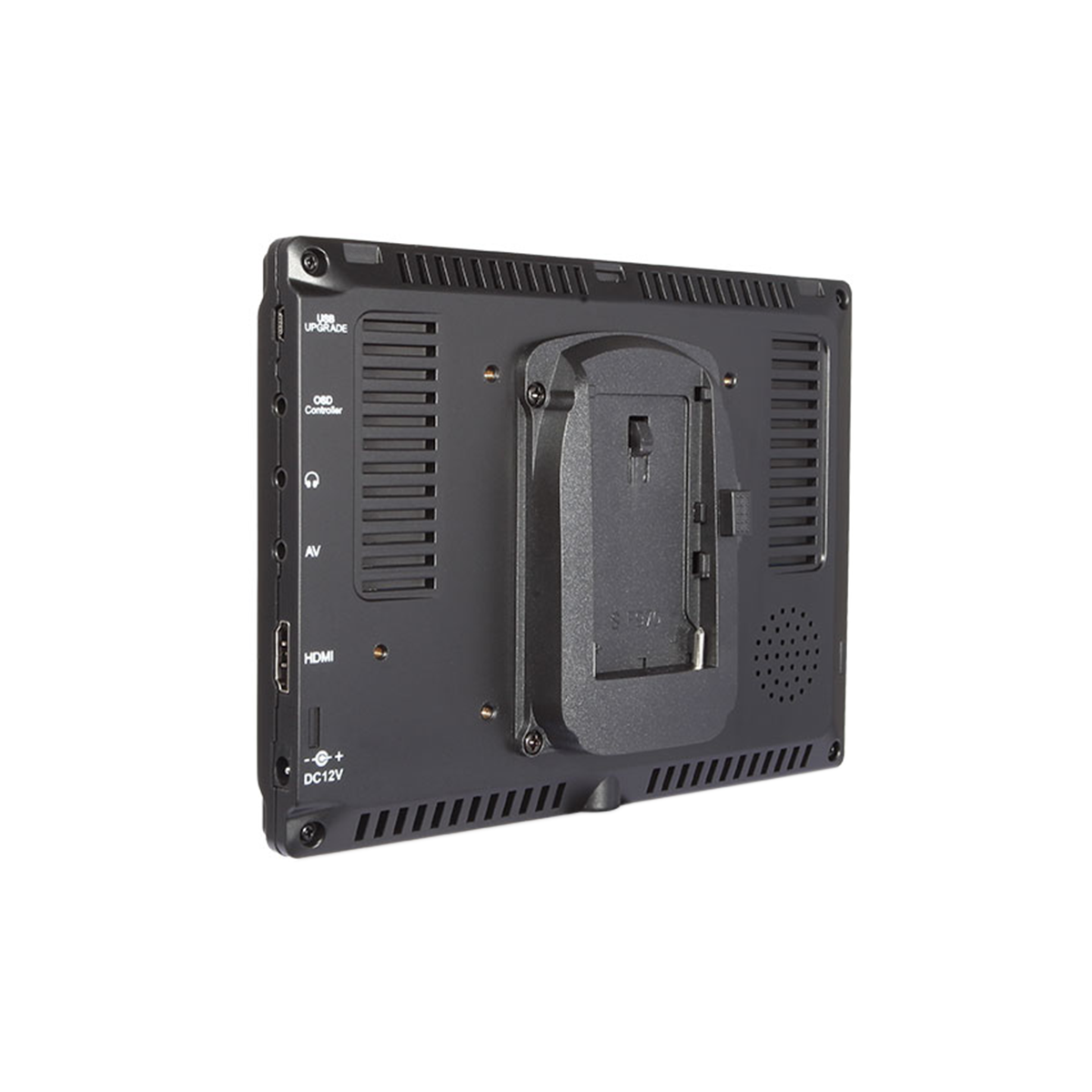

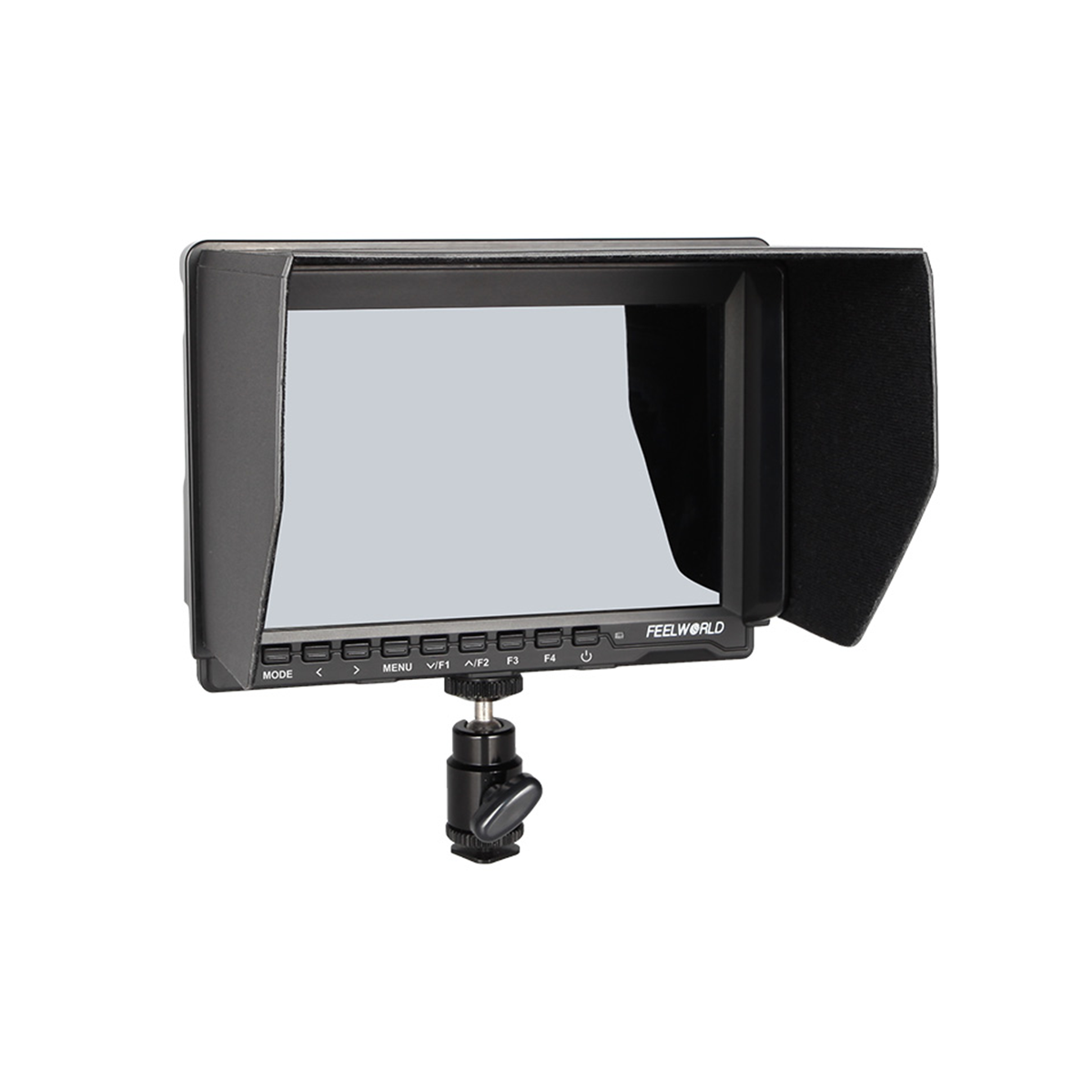

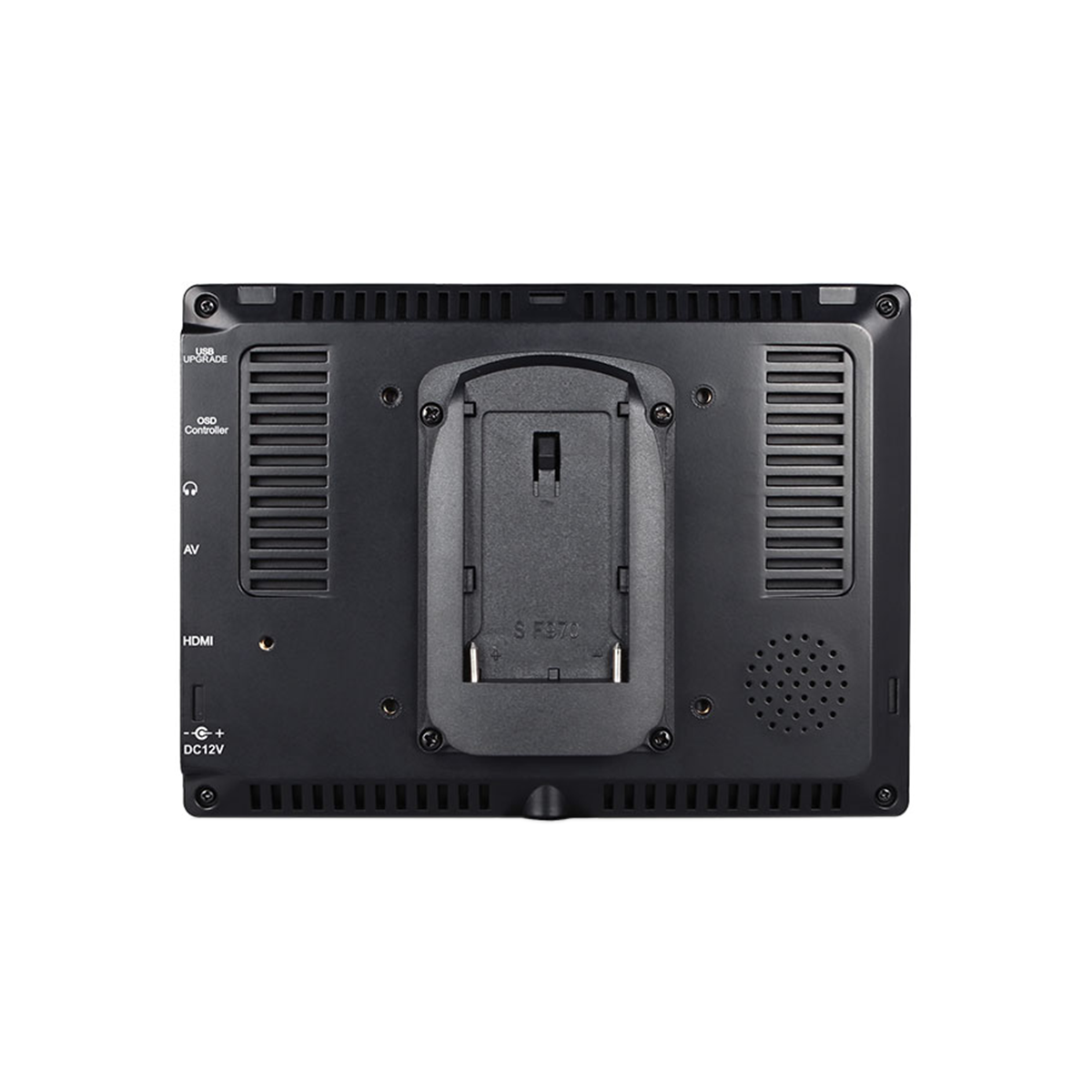

FeaturesWide view angle IPS Screen, High resolution 1280×800, bright, colorful displayThe enhanced 400cd/m² backlight and 800:1 color contrast ratioSlim design 17mm, Portable Light compatible for Steadycam, DSLR Rig, Camcorder Kit, HandheldStabilizer, Video Camera CraneInputs: HDMI, AV, Wire remote OSD controller; Outputs: Built-in Speaker, 3.5mm AudioHistogramPeaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)False ColorsZebra Exposure Nine GridEmbedded Audio MeterScan ModeZoom (Auto,4x,9x,16x) Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X) Pixel to Pixel Center MarkerSafe Area (80%,85%,90%,93%,96%,2.35:1)Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1) Marker Color (Red,Green,Blue,White,Black）Check Field (Red/Green/Blue/Mono)Image Flip (H, V, H/V) Image Freeze Zoom All (0~100 adjustable) U/D & L/R Zoom (0~100 adjustable) Color Temperature AdjustmentSpecificationScreen Size: 7″ IPSResolution: 1280×800 pixelsAspect Ratio: 16:10Dot pitch: 0.11775(H) × 0.11775(V) mmBrightness: 400cd/m²Contrast Ratio: 800:1Backlight: LEDViewing Angle: 89°/89°(L/R) 89°/89°(U/D)HDMI Input: YesAV Input: YesOSD Controller: Wire remote OSD controllerAudio Out: Stereo Headphone, SpeakerHDMI Support Format: 480i/576i/480p/576p/1080i (60/59.94/50)/720p (60/59.94/50/30/29/25/24/23.98)/1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) /4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)Input Voltage: DC6.5～35VPower Consumption: ≤5WPower Connector: DCBattery Plate: F970 (Standard); D28S, LP-E6 (Optional)Working Temperature: -20°C~50°CStorage Temperature: -30°C~60°CInstall Way: 1/4″-20 Thread Socket (1 bottom side)Unit Size: 176L×130H×17D (mm)Unit Weight: 300gColor Box Size: 220L*192W*62H(mm)Outer Carton Qty: 10Outer Carton Size: 382*236*444 (mm)Gross Weight: 9.2kgsAdvanced FeaturesBrightness HistogramEmbedded AudioPeaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)False ColorsZebra Exposure (1-100IRE adjustable)Check Field (Red, Green, Blue, Mono)Anamorphic Mode (1.3x, 2.0x, 2.0x mag)Image Flip (H, V, H/V)Image FreezeCenter MarkerScreen Marker (80%,85%,90%,93%,96%, 2.35:1)Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)Color Temperature AdjustmentNine Grid (Zoom one of the images to realize the full screen)Zoom (4X, 9X, 16X)Aspect RatioPixel to PixelZoom AllU/D ZoomL/R ZoomPackage Include1× Mini HDMI Cable1× Sunshade1× Hot Shoe Mount1× F970 Battery Plate1× HDMI Plug Lock1× Operation Manual
Fpv Monitors
