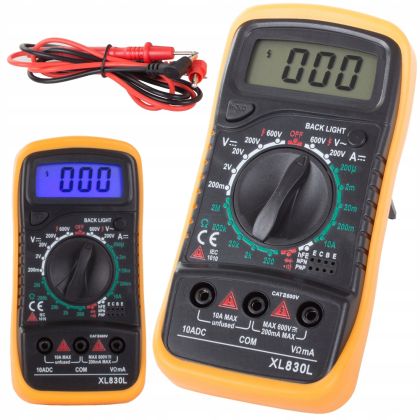

DIGITAL MULTIMETER VOLTAGE TESTER 9V BATTERY
$35.98
$70.88
The voltage meter is equipped with a blue backlighting function so that the screen is always easy to read. The multimeter also has a hold function with which you can remember the last measurement TECHNICAL SPECIFICATIONS: - High maximum current and DC voltage measurement ranges - High maximum measuring ranges for AC voltage - Useful measuring ranges for small DC currents - Has a casing that protects against electric shock THE METER ALLOWS THE FOLLOWING TYPES OF MEASUREMENTS: - Circuit continuity check - Measurement of resistance - Measurement of diodes - Measurement of DC current - Measurement of DC and AC voltage - Transistor measurement - LCD backlighting - HOLD - Dimensions: 7cm x 14cm x 3.5cm TECHNICAL DATA: - DCV - 200m/2/20/200[V] /-(0.5% /- 2) - 1000V /-(0,8% /- 2) - 0.2 mV-1000V - ACV - 200V /-(1,2% 3) - 750V /-(1,2% 3) - 0.2mV-750V - DCA - 200uA/2000uA/20mA /-(1% /-2) - 200mA /-(2% /-2) - 10A /- (3% /-2) - 10uA-10A - OHM - 200ohm /-(0.8% /-2) - 2k/20k/200k/2M[ohms] /-(0.8% /-2) - 200Mohm /-(1% /- 2) - 0.2ohm-200Mohm - Transistor test: yes - Automatic switch-off: yes - Diode test: yes - Circuit continuity indication: yes - LCD display: yes - Battery: 9V 6F22 (supplied) - Display size: 15x46mm - Dimensions: 67x124x22mm - Meter is CE certified
