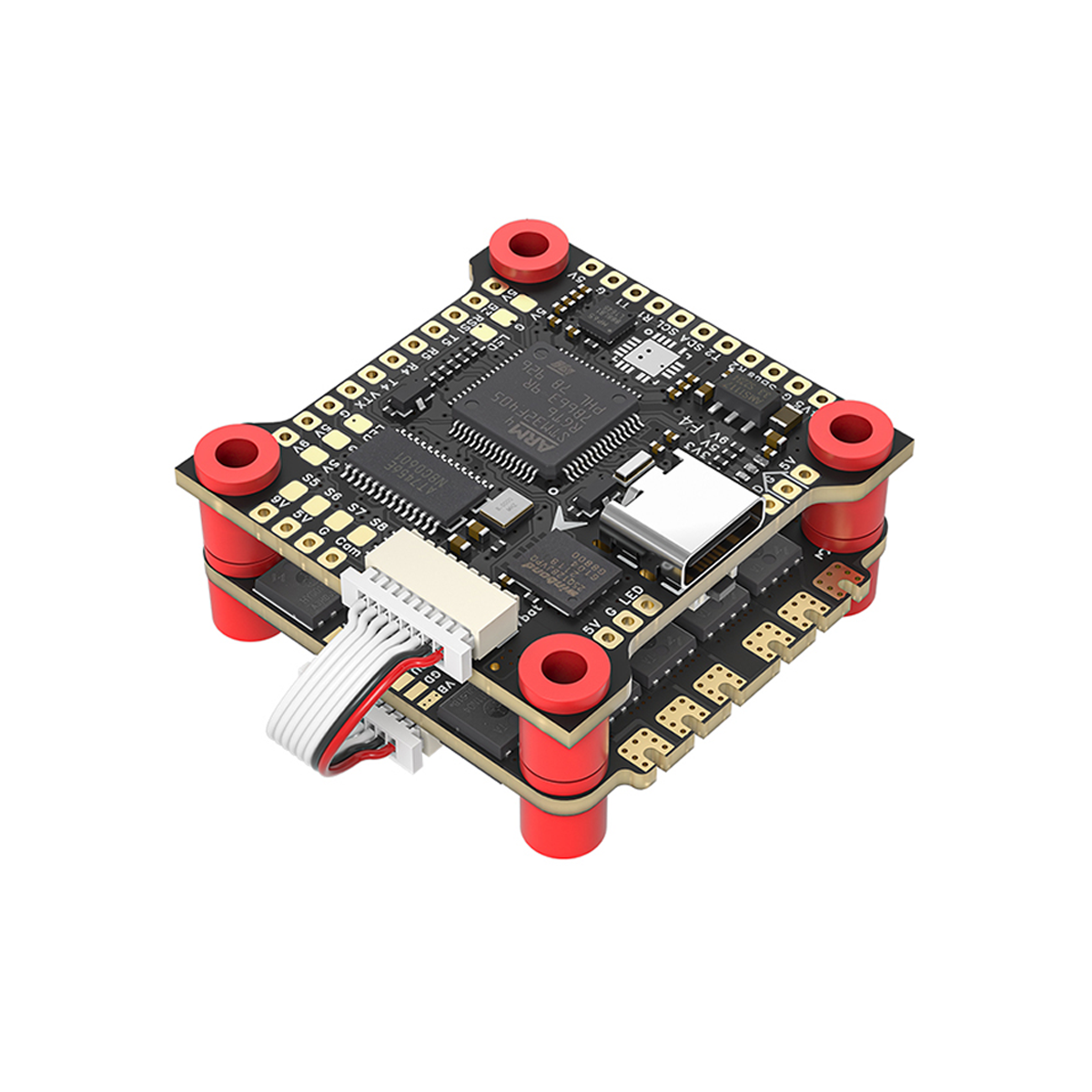

F405 V2 40A/45A/50A/55A/60A STACK

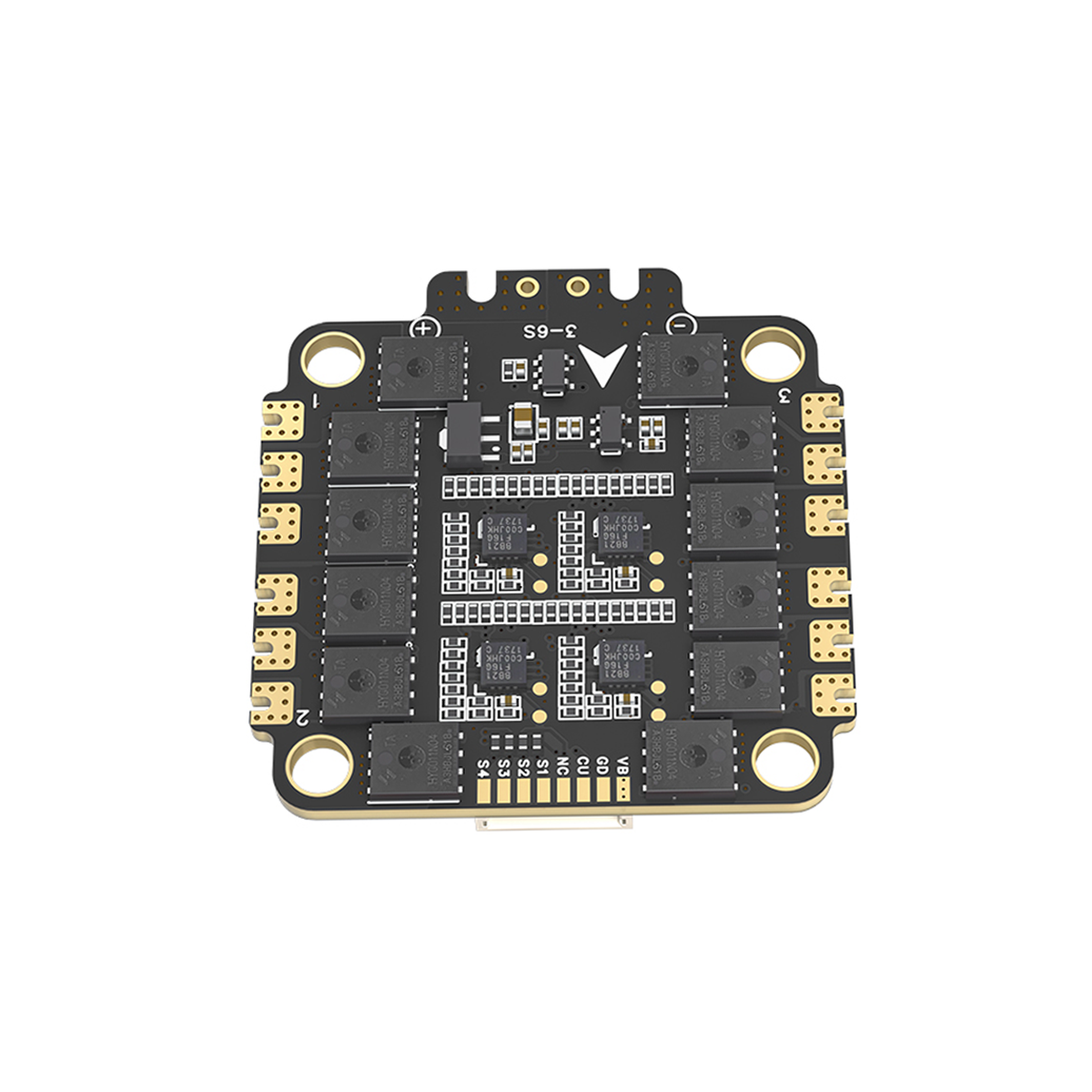

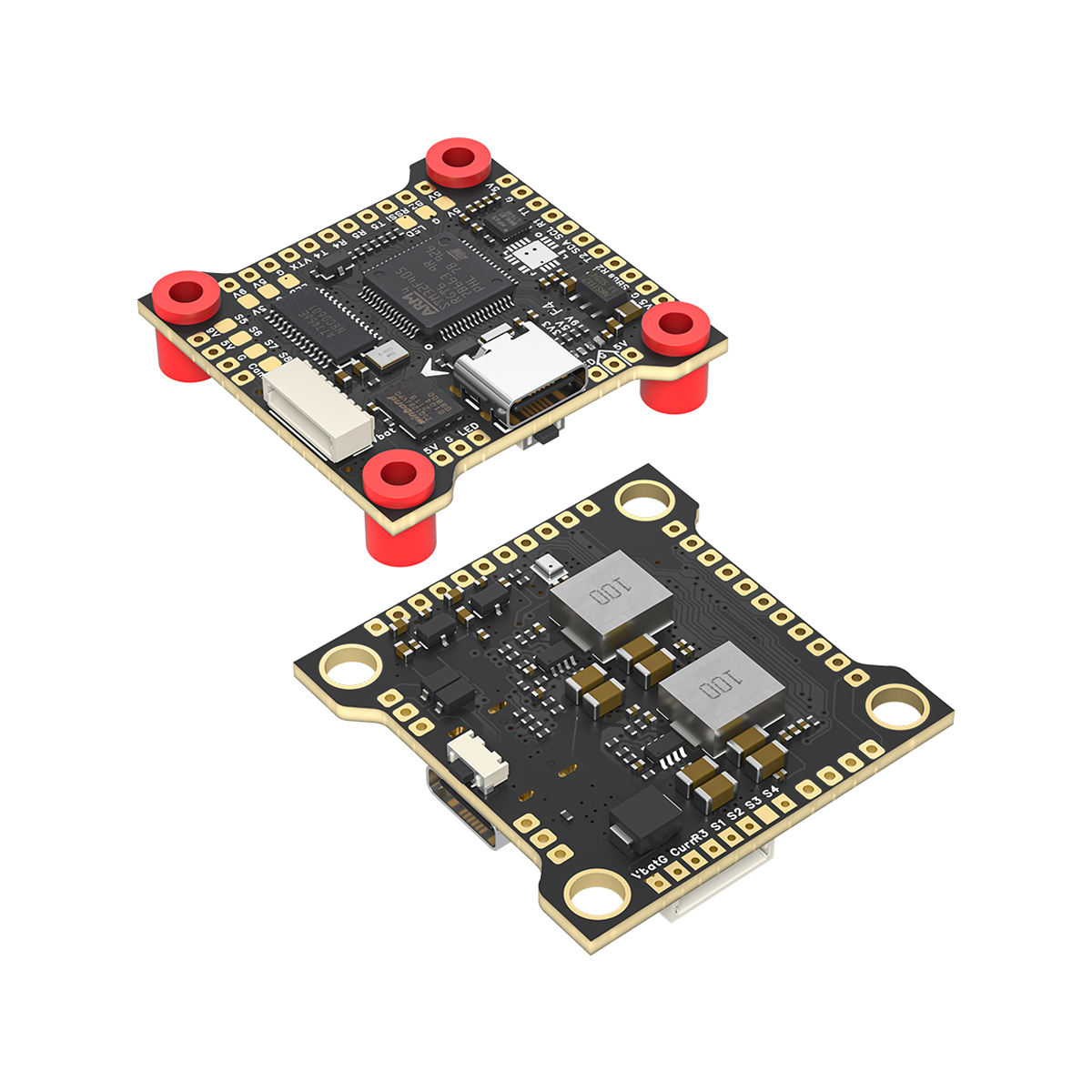

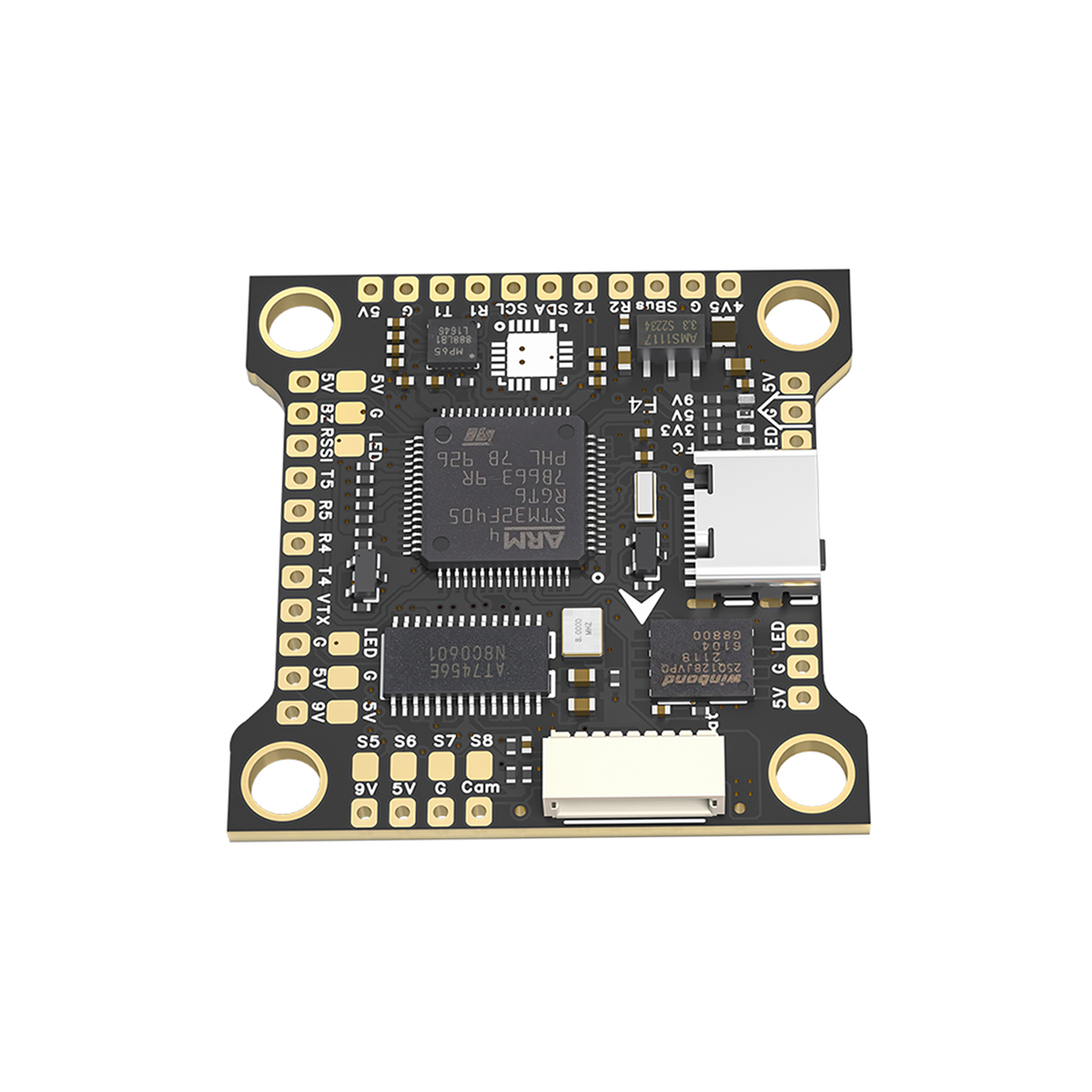

FeaturesOnboard barometer, OSD, and 16M black box provide advanced telemetry and flight data recording for accurate tuning and diagnostics.Features 5 UART ports and supports multiple receiver types, including SBUS, PWM, IBUS, and CRSF (default UART2).Flexible Power Output: Supports both 5V/2.5A and 9V/2A BEC outputs, ensuring stable power delivery for various peripherals and components, enhancing system reliability.Dual Firmware Support: Compatible with Betaflight AOCODARCF4V2 (MPU6500, 4.5.1) and INV (AOCODARCF4V2, 7.1.2).Seamlessly compatible with the DJI Digital FPV System, ensuring a straightforward and hassle-free setup for digital FPV enthusiasts.With dimensions of 37x37x8mm and a weight of just 8g, this flight controller fits easily into a wide range of frames.A range of 4-in-1 ESC models is available (40A, 45A, 50A, 55A, and 60A), each with different stack specifications to suit various power requirements and drone setups, ensuring optimal performance and customization options.SpecificationFlight Controller MCU: STM32F405RGT6 IMU: MPU6500 Barometer: BMP280 OSD: AT4756E Black Box: 16M Motor output: 8CH UART: 5 BEC Output: 5V/2.5A; 9V/2A Support RX: SBUS, PWM, IBUS, CRSF (Default UART2) Firmware: Betaflight: AOCODARCF4V2_MPU6500_4.5.1 / INV: AOCODARCF4V2_7.1.2 Dimension: 37*37*8mm Mounting Hole: 30.5*30.5 (4mm hole) Weight: 8g 40A 4 in 1 ESC MCU: EFM8BB21F16G Firmware: Bluejay H_H_50_48_V0.21.0 Continuous Current: 40A Peak Current: 45A Current Sensor: Yes ESC Protocol: DShot150/DShot300/DShot600/Standard/Multishot/Oneshot42/PWM Power Input: 3-6S LiPo Mounting: 30.5 x 30.5mm Dimension: 40(L) * 40.7(W) *5.8mm(H) Weight: 11.9g45A 4 in 1 ESC MCU: EFM8BB21F16G Firmware: Bluejay H_H_50_48_V0.21.0 Continuous Current: 45A Peak Current: 50A Current Sensor: Yes ESC Protocol: DShot150-600/STANDARD/Multishot/Oneshot/PWM Power Input: 3-6S LiPo Mounting: 30.5 x 30.5mm Dimension: 40(L) * 40.7(W) *5.8mm(H) Weight: 11.9g50A 4 in 1 ESC MCU: EFM8BB21F16G Firmware: Bluejay H_H_50_48_V0.21.0 Continuous Current: 50A Peak Current: 55A Current Sensor: Yes ESC Protocol: DShot150-600/STANDARD/Multishot/Oneshot/PWM Power Input: 3-6S LiPo Mounting: 30.5 x 30.5mm Dimension: 40(L) * 40.7(W) *5.8mm(H) Weight: 11.9g55A 4 in 1 ESC MCU: EFM8BB21F16G Firmware: Bluejay H_H_50_48_V0.21.0 Continuous Current: 55A Peak Current: 60A Current Sensor: Yes ESC Protocol: DShot150-600/STANDARD/Multishot/Oneshot/PWM Power Input: 3-6S LiPo Mounting: 30.5 x 30.5mm Dimension: 40(L) * 40.7(W) *5.8mm(H) Weight: 11.9g60A 4 in 1 ESC MCU: EFM8BB21F16G Firmware: Bluejay H_H_50_48_V0.21.0 Continuous Current: 60A Peak Current: 65A Current Sensor: Yes ESC Protocol: DShot150-600/STANDARD/Multishot/Oneshot/PWM Power Input: 3-6S LiPo Mounting: 30.5 x 30.5mm Dimension: 40(L) * 40.7(W) *5.8mm(H) Weight: 11.9g
