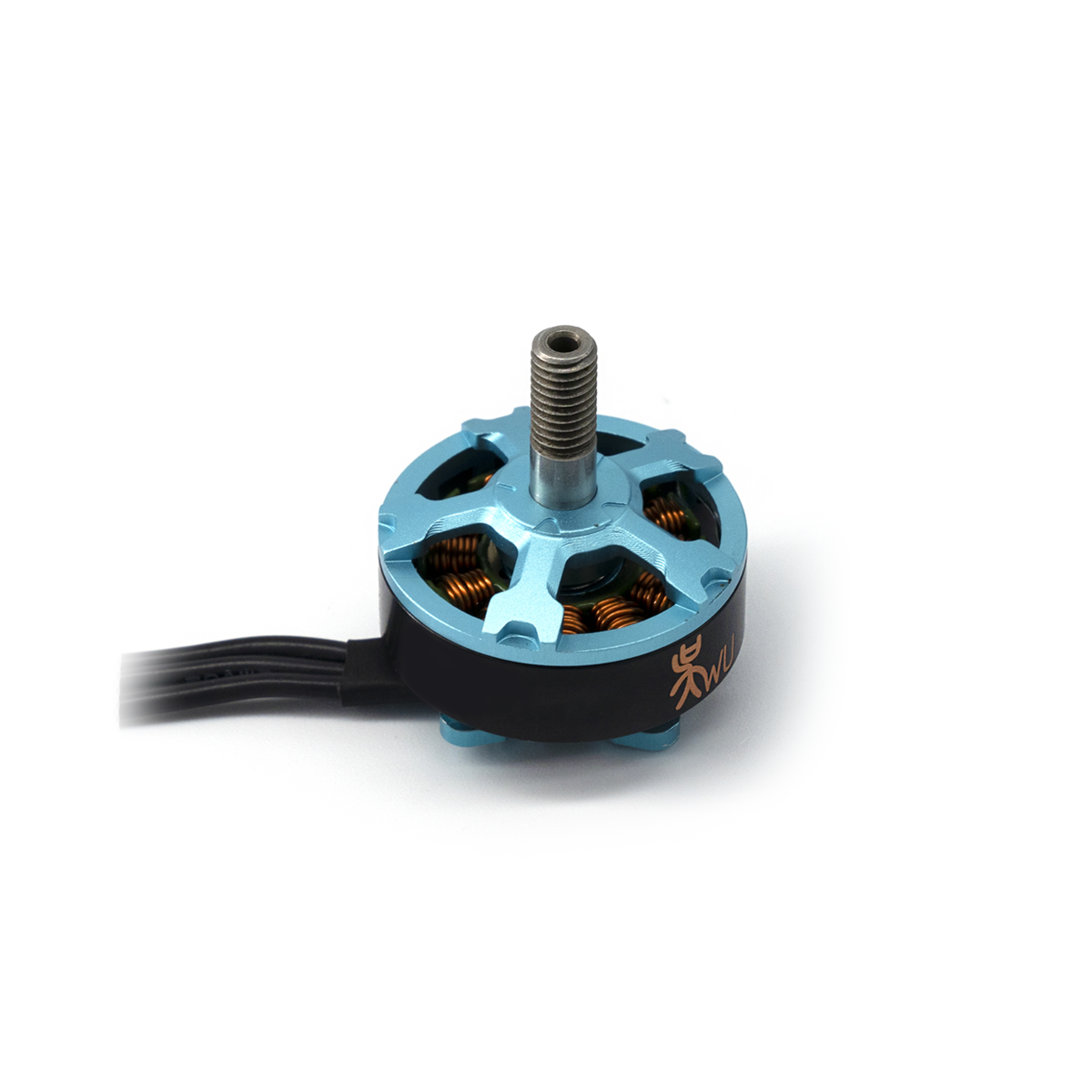

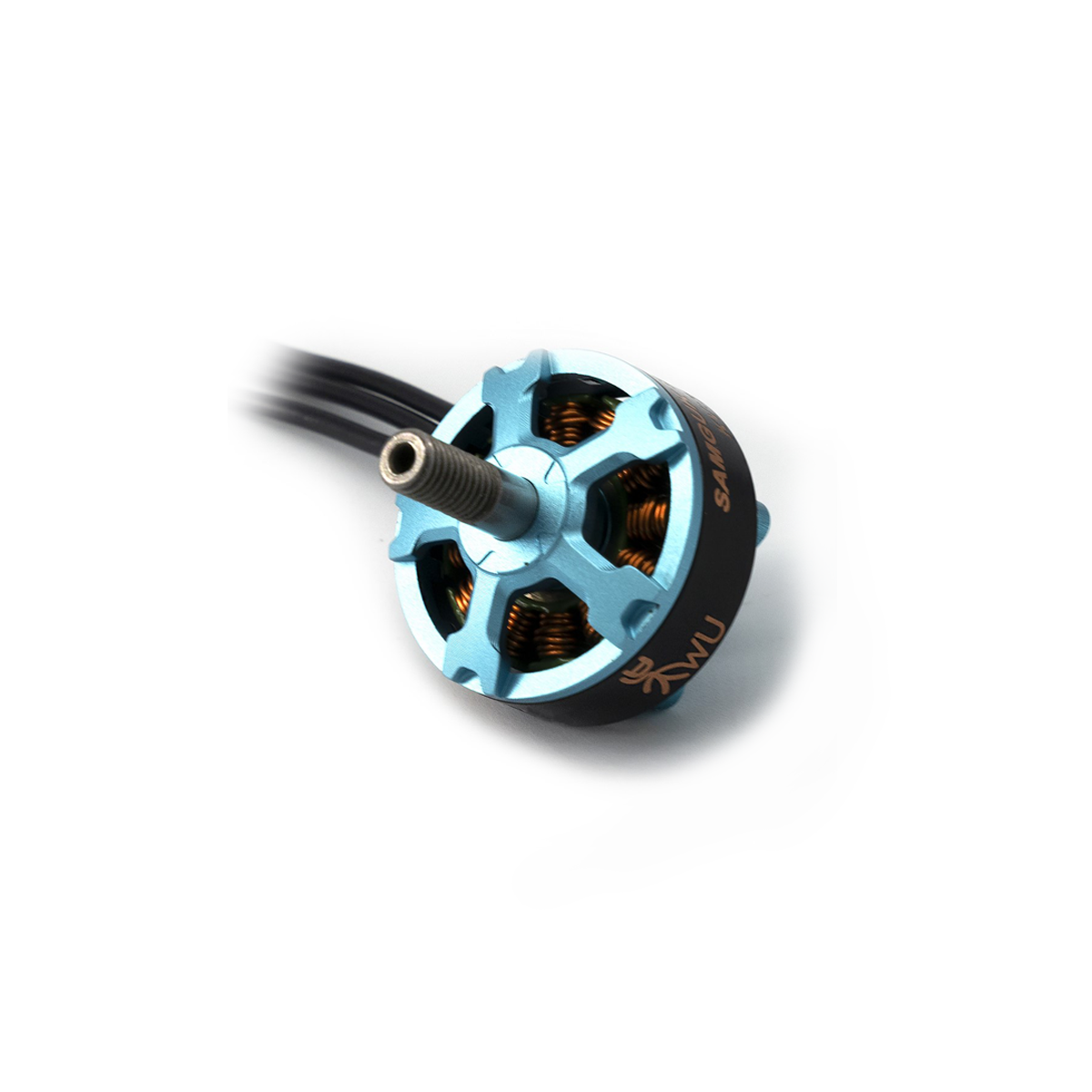

2206 2400KV/2700KV Motor
$14.39
$25.47
FeatureThis motor is ideal for applications requiring compact and lightweight components, such as drones or RC vehicles.Compatible with 3-4S LiPo battery cells, providing flexibility for different power configurations.Available in two KV ratings: 2400KV and 2700KV, allowing users to choose between higher torque or higher speed, depending on their needs.With an internal resistance of 0.07 (2400KV) and 0.06 (2700KV), the motor minimizes energy loss and improves efficiency, enhancing overall performance.SpecificationsConfigu Ration: NP Stator Diameter: 22mm Stator Length: 6mm Motor Dimensions(Dia*Len): Φ27.7*18.7mm Weight: 31.15g (W/ o Wire) NO.of Cells: 3-4S 2206 2400KV Max Continuous Current: 32.7A Max Continuous Power: 523.2W Internal Resistance: 0.07 2206 2700KV Max Continuous Current: 43.2A Max Continuous Power: 691.2W Internal Resistance: 0.06 2400KV Motor2700KV Motor
